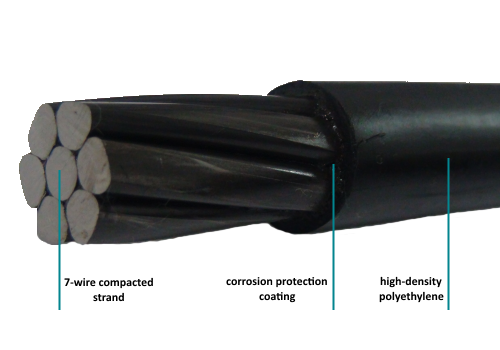

Seven wire compacted strand, covered in a suitable layer of anti-corrisive grease, HDPE coated with high-density poly-ethylene. This coating is an efficient protection against oxidation, allowing the strand to slide inside the HDPE cover.
It is used in plate post-tensioning and in pre-tensioned covering.
| Weight | Coil sizes | |||
|---|---|---|---|---|
| (Kg) | D (mm) | d (mm) | h (mm) | |
| ≤ 2700 | < 1420 | 900 | 760 |  |
| Steel name | Nominal | Specified | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Diameter | Rm | Sn | M | Permitted deviation on mass per metre |
Fm | Fm,max | Fp0.1 | Agt | |
| mm | MPa | mm² | g/m | % | kN | kN | kN | % | |
| Y1820S7G * | 15.2 | 1820 | 165.0 | 1289.0 | ±2 | 300.0 | 345.0 | 264.0 | 3.5 |
| Y1860S7G * | 12.7 | 1860 | 112.0 | 874.7 | 208.0 | 239.0 | 183.0 | ||
* Standard for England
| Characteristics | Test Method / Standards | Acceptance Criteria |
|---|---|---|
| Melt index | ISO 1133 10 min at 2.16 Kg |
≤ 0.25 g |
| Density | DIN 53479 | ≥ 0.95 g/cm³ |
|
Carbon black Content Disperson Distribution |
ISO 6964 ISO 4437 ISO 4437 |
2.3 ± 0.3% Index Max: C2 Index Max: 3 |
| Tensile strength (23ºC) | EN ISO 527-2 | ≥ 22 MPa |
|
Elongation At 23ºC At -20ºC |
EN ISO 527-2 EN ISO 527-2 |
> 600% > 350% |
| Thermal stability | ISO / TR 10837 | ≥ 20 min at 210ºC in O2 without degradation |
Note: Only applicable for black HDPE.
| Characteristics | Value | Norm |
|---|---|---|
| Cone Penetration 60 Strokes (1/10mm) | 250-300 | ISO 2137 |
| Dropping point | ≥ 150° C | ISO 2176 |
| Oil Separation at 40° C | at 72 hours ≤ 2.5 % at 7 days ≤ 4.5 % |
DIN 51817 |
| Oxidation Stability | 100 hours at 100° C ≤ 0.06 MPa 1000 hours at 100° C ≤ 0.2 MPa |
DIN 51808 |
|
Corrosion Protection 168 hours at 35° C 168 hours at 35° C |
pass no corrosion |
NFX 41-002 (salt spray) NFX 41-002 (distilled water spray) |
| Corrosion Test | grade 0 | DIN 51802 |
| Content of Aggressive elements Cl-, S2-, NO3- SO42- |
≤ 50 ppm (0.005%) ≤ 100 ppm (0.010%) |
NFM 07-023 NFM 07-023 |
Other specifications on request.
All kinds of pre-tensioning with wedge anchoring.
Some examples:
- Bars;
- Plates;
- Beams;
- Tubes;
- Pillars;
- Pre-tensioned panels.
Whenever required by the customer, manufacturing is done in conformity with any international standard, namely BS, ASTM, UNE, DIN, etc.
