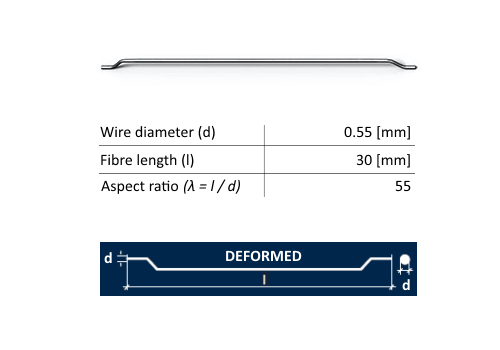

Deformed elements of cold-drawn round wire – low carbon.
Bounding concrete to the traditional materials.
C9D (according with EN 16120-2)
| Nominal | Tolerance | Geometry | |
|---|---|---|---|
| Wire diameter (d) | 0.55 [mm] | [0.52 – 0.58] [mm] |  |
| Fibre length (l) | 30 [mm] | [28.5 – 31.5] [mm] | |
| Aspect ratio (λ = l / d) | 55 | [47 – 63] |
| Tensile Strength | 1395 [N/mm²] | [1290 – 1500] [N/mm²] |
| Modulus of Elasticity | ± 200 000 [MPa] | |
| Bag Weight | Number of fibers / kg | Pallet standard | ||
|---|---|---|---|---|
| 20 Kg | 17870 | 1200 kg - 60 paper bags | ||
 |
||||
Other specifications on request.
Steel fibers suitable for “shotcrete”, tunneling construction, slope stabilization and fabrication of pre-cast elements.
Examples:
