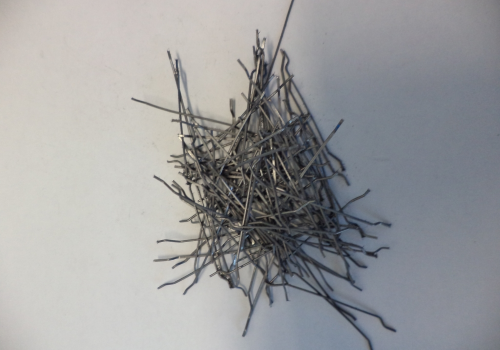

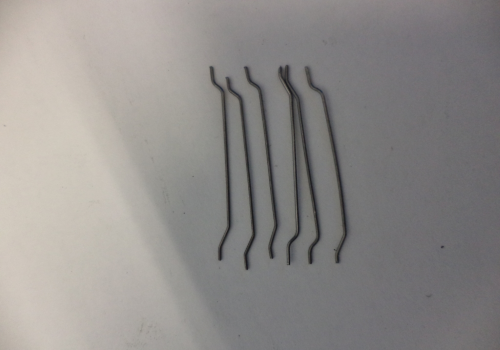

Deformed elements of cold-drawn round wire – low carbon.
Bounding concrete to the traditional materials.
C9D according to EN 16120-2

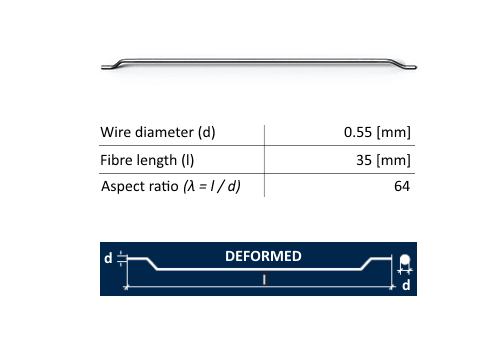

Nominal | Range | Shape | |
---|---|---|---|
Wire diameter (d) | 0.55 [mm] | [0.52 – 0.58] [mm] | ![]() |
Fibre length (l) | 35 [mm] | [33 – 37] [mm] | |
Aspect ratio (λ = l / d) | 64 | [59 – 69] |
Tensile Strength | 1395 [N/mm²] | [1290 – 1500] [N/mm²] |
Modulus of Elasticity | ± 200 000 [MPa] |

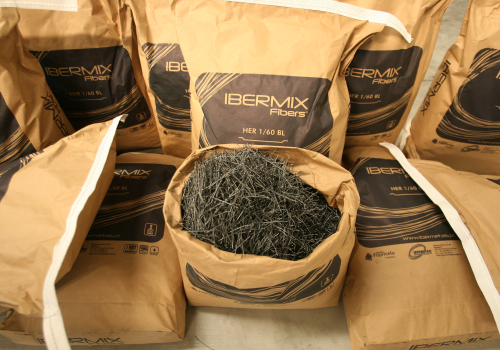

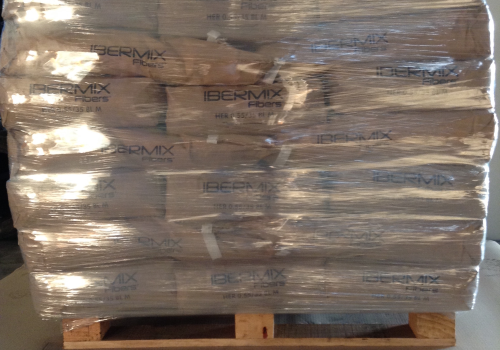

Net Weight | Nº fibers / kg | Pallet standard | ||
---|---|---|---|---|
20 Kg | 15320 | 1200 Kg - 60 bags | ||
![]() |
Other specifications on request.
