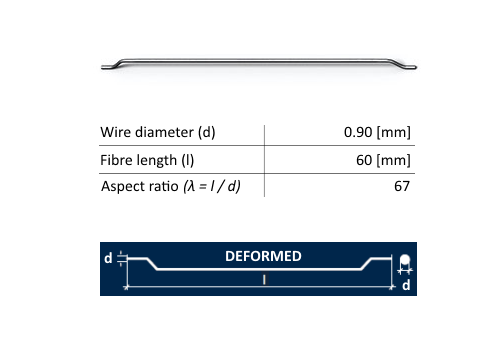

Deformed elements of cold-drawn round wire – low carbon.
Bounding concrete to the traditional materials.
C9D (according with EN 16120-2)
| Nominal | Tolerance | Geometry | |
|---|---|---|---|
| Wire diameter (d) | 0.90 [mm] | [0.86 – 0.94] [mm] |  |
| Fibre length (l) | 60 [mm] | [54 – 66] [mm] | |
| Aspect ratio (λ = l / d) | 67 | [57 – 77] |
| Tensile Strength | 1130 [N/mm²] | [1045 – 1215] [N/mm²] |
| Modulus of Elasticity | ± 200 000 [MPa] | |
| Bag Weight | Number of fibers / kg | Pallet standard | ||
|---|---|---|---|---|
| 20 Kg | 3340 | 1200 Kg - 60 paper bags | ||
 |
||||
Other specifications on request.
The fibers are indicated for precast concrete, floorings, suitable for the execution of commercial or industrial centers, external or internal decks, foundations and concrete pipes.
Examples:
